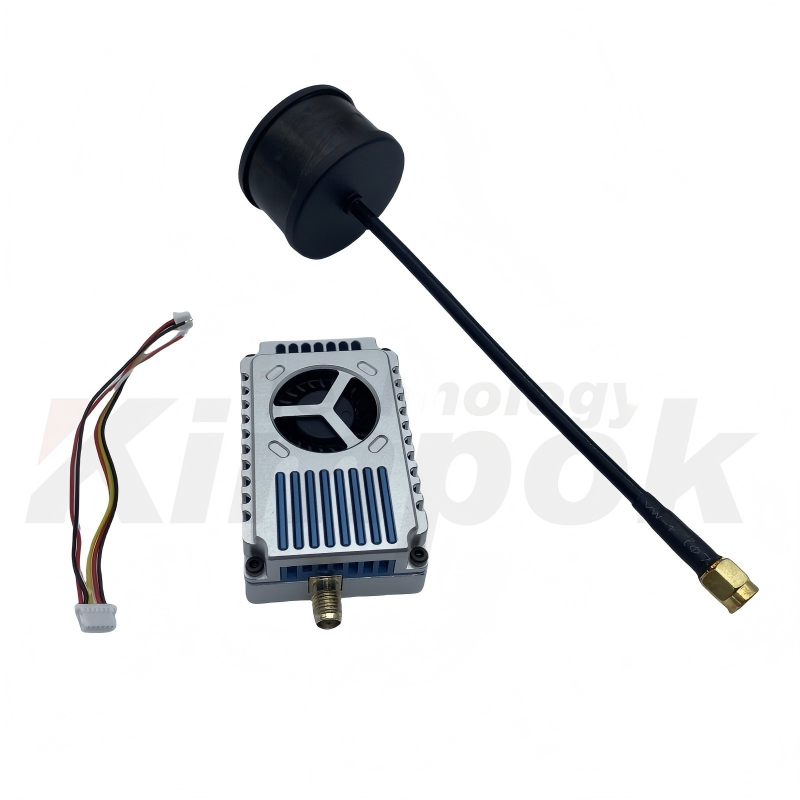

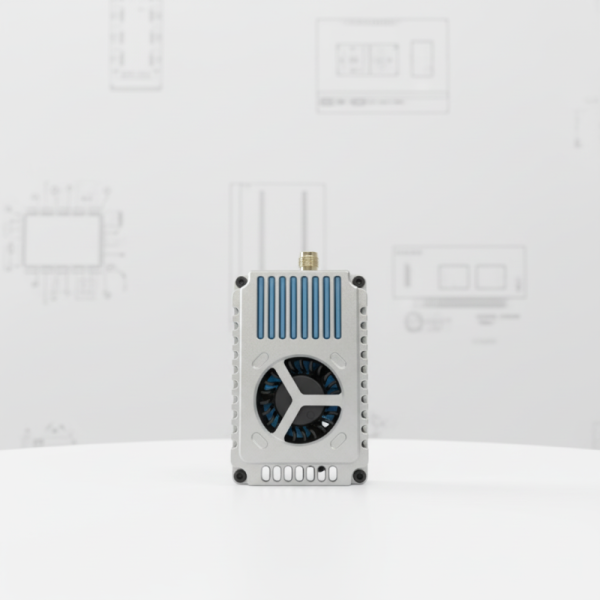

Kimpok 1.2GHz 10W Video Transmitter – Switchable Power 1–10W, 9CH, Long Range
This professional-grade 1.2GHz video transmitter represents the pinnacle of configurable, ultra-high-power airborne video transmission. Engineered for mission-critical applications where maintaining video link integrity under extreme conditions is paramount, it offers unparalleled power reserve, intelligent adaptability, and spectral agility.
Key Technical Advantages
Optimal 1.2GHz Frequency Band
The 1.2GHz band provides superior long-range and non-line-of-sight characteristics with reduced free-space path loss and enhanced signal diffraction, making it ideal for extreme-distance operations and navigating around obstacles more effectively than higher frequency bands.
Granular Power Control (1W/2.5W/5W/7.5W/10W)
Five-step switchable output enables intelligent, phase-based power management:
- 1W: High-performance baseline for initial climb-out and medium-range segments
- 2.5W/5W: Standard and extended long-range cruise settings
- 7.5W: High-stress setting for challenging segments and known obstacles
- 10W: Maximum assurance mode for emergency penetration and link recovery
Enhanced 9-Channel Spectrum Management
Nine channels provide superior flexibility for finding clean frequencies and supporting complex multi-vehicle or relay-based mission architectures with distinct, non-interfering channel assignments.
Critical Requirements & Warnings
This 10W VTx operates under strict professional telecommunications regulations and requires:
- Dedicated, professionally licensed frequency allocation
- Formal RF exposure compliance with calculated exclusion zones
- High-current power system (20-25A+ at 12V) with heavy filtering
- Active thermal management with forced-air cooling
- Perfectly impedance-matched antenna system (VSWR <1.2:1)
- Extensive electromagnetic compatibility measures
Application Summary
Designed for the most demanding BVLOS/NLOS applications in critical infrastructure inspection, long-range environmental monitoring, and specialized reconnaissance where guaranteed video link integrity is the primary design driver. Successful deployment requires expert-level RF engineering, thermal design, and systems integration knowledge.
