75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC

Name: 75100W RF Linear Power Amplifier 900980MHz 50dB Gain 27VDC
Brand: Kimpok
Price: 1 USD

Quality 75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC for sale

Brand Name : Kimpok

Model Number : KP-RFPA900

Certification : CE certificate

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 5000pcs/month

Delivery Time : 3-7 working days

Packaging Details : International standard packing

Contact Now

Long Range 75-100W RF Linear Power Amplifier 900-980MHz

High-Power RF Amplifier with SMA-Female Ports

This 75-100W RF Linear Power Amplifier operates in the 900-980MHz frequency range, delivering 48.5dBm-50dBi output power with 27V DC power supply. Designed for long-range applications, it features SMA-Female input/output ports and advanced protection options.

Technical Specifications

No.	Item	Specification
1	Frequency Range GSM	900-980MHz (Customizable)
2	Gain	50dB
3	Max RF Output Power	48.5dBm-50dBm
4	Input Range	≤10dBm
5	Gain Adjust Range	31dB
6	Gain Adjust Step	1dB
7	In-Band Ripple	2dB
8	Input/Output VSWR	Less than 1.5
9	Working Voltage	27VDC
10	Working Current	75W: 8A 100W: 9.1A
11	RF Input/Output Ports	SMA-Female
12	Dimension	21011025mm
13	Weight	2kg

Advanced Features

Power Supply Interface: Pull-core Capacitance
Optional shutdown protection for high VSWR and temperature conditions
Auto-restart after 30 seconds following shutdown
DB9 Male (Option) with RS485 interface (includes free PC software)
DB15 Female interface with multiple attenuation and monitoring options

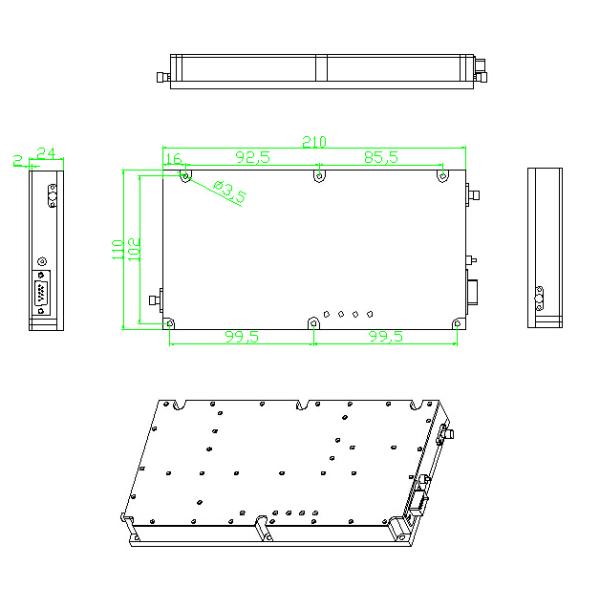

Product Image

75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
